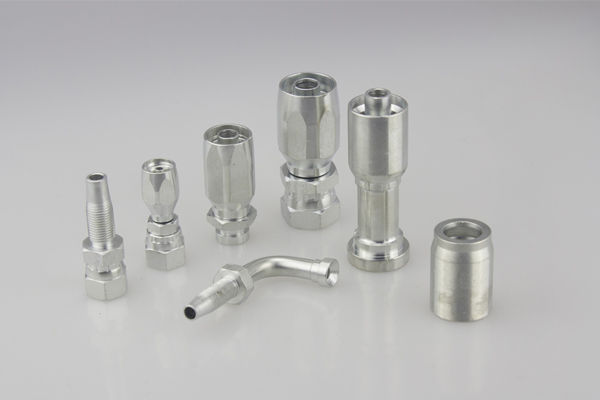

22111one piece is BSP female multiseal integral fitting. Complete sizes from 04 to 24 are involved in YH daily production. One item of 22111 one piece includes 22111 fitting and related ferrules crimped together. It can be used to make hose assembly directly. One piece fittings come in material of mild steel, stainless steel, brass, aluminum, etc.

Details

Model NO: 22111
Material: Stainless Steel
Surface Treatment: Galvanized Sheet
Delivery Time: Big Quantity:30 Days After Payment
Trademark: YH
Specification: DIN SGS
HS Code: 73072900
Standard: DIN, GB, JIS
Connection: Male
Head Type: Hexagon
Transport Package: Plastic Bag+Box+Pallet
Origin: China

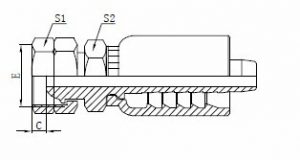

Technical Data Table

  代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1S2
22111-04-04one pieceG1/4"X1960441717
22111-06-06one pieceG3/8"X19100642219
22111-08-08one pieceG1/2"X1412084.52722
22111-10-10one pieceG5/8"X14161042727
22111-12-10one pieceG3/4"X1416105.53227
22111-12-12one pieceG3/4"X1420125.53232
22111-16-16one pieceG1"X11251673838
22111-20-20one pieceG1.1/4"X11322065050
22111-24-24one pieceG1.1/2"X11402465555
