Best Selling Flexible Heat Resistant Rubber Hydraulic Hose Sae 100r2at/din En853 2sn Maker

DIN EN853 2SN is two steel wire braided hydraulic hoses. 2SN hoses are suitable for high pressure working circumstance. Hydraulic hoses equipped with related fittings and ferrules are used for connecting parts of heavy machines so good quality can ensure machines function well. YH promise quality products selling to customers.

Details

Part no.: DIN EN853 2SN

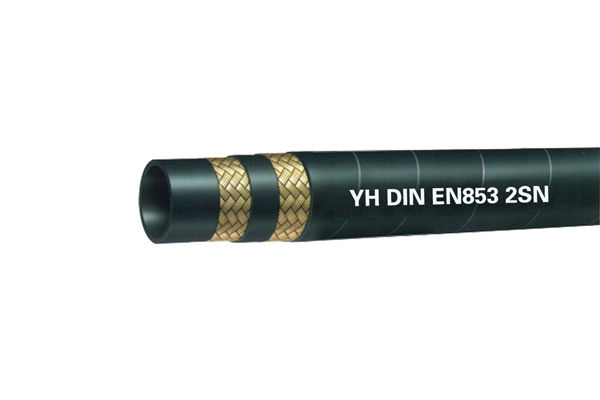

Construction: This hose consists of an inner tube of oil synthetic rubber, two wire braid reinforcement, and oil and weather resistant synthetic rubber cover
Sizes: from 1/4’’ to 2’’
MOQ: 200PCS one item
Surface: descriptions of hoses on hose surface with logo

Technical Data Table

名义直径 Nominal Diameter		内径 Inside diameter mm		钢丝层直径 Reinforcement Diameter mm		外径 Outside diameter mm		工作压力working pressure MPa	试验压力 Proof pressure MPa	爆破压力burst pressure MPa	最小弯曲 Min. bend Radius mm
Min	Max	Min	Max	Min	Max	Min	Max	Max	试验压力 Proof pressure MPa	Min	最小弯曲 Min. bend Radius mm
5	3/16	4.6	5.4	10.6	11.6	12.7	14.1	41.5	83	165	90
6.3	1/4	6.2	7.0	12.1	13.3	14.3	15.7	40	80	160	100
8	5/16	7.7	8.5	13.7	14.9	15.9	17.3	35	70	140	115
10	3/8	9.3	10.1	16.1	17.3	18.3	19.7	33	66	132	125
12.5	1/2	15.5	13.5	19.0	20.6	21.4	23.0	27.5	55	110	180
16	5/8	12.3	16.7	22.2	23.8	24.6	26.2	25	50	100	205
19	3/4	18.6	19.8	26.2	27.8	28.5	30.1	21.5	43	85	240
25	1	25.0	26.4	34.1	35.7	37.3	38.9	16.5	32.5	65	300
31.5	1.1/4	31.4	33.0	43.2	45.6	47.1	49.5	12.5	25	50	420
38	1.1/2	37.7	39.3	49.6	52.0	53.3	55.9	9	18	36	500
51	2	50.4	52.0	62.3	64.7	66.0	68.6	8	16	32	630
