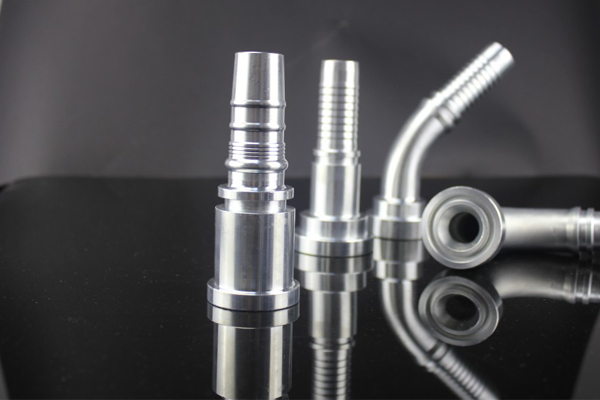

87912 flange fittings are SAE flange 9000PSI for one wire, two wire and spiral hoses. Flange fittings have been put into the mass production for several years. So we have got the cheapest costing to manufacture complete sizes of flange fittings. Also very complete sizes are kept as stock products for your choose and fast delivery.

Details

Part no.: 87912(SAE Flange 9000PSI For Spiral Hose)
Materials: 45 carbon steel, stainless steel, etc.
Sizes: standard sizes are showed on technical data table; others as per customers’ requests.
Surface treatment: zinc plated, nickel plated, chrome plated, hot-dip galvanized, etc.
Payment term: 30% TT in advance, 70% TT before shipment; as invoice said
Prices term: available for FOB, CIF, CFR, Ex-work

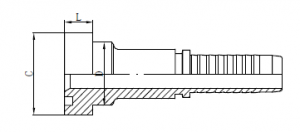

Technical Data Table

   代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管

HOSE BORE

尺  寸

DIMENSIONS

公称内径DN标 号 DASHCDL
87912-08-081/2"120831.823.914.3
87912-12-123/4"201241.331.714.3
87912-16-161"251647.63814.3
87912-20-201.1/4"32205443.614.3
87912-24-241.1/2"402463.550.814.3
87912-32-322"503279.466.514.3

FAQ

What about shipping?
A: We ship small batches by air, or larger orders by container. In any event, we get quality Hot sale hydraulic metric pipe fittings nipple for hydraulic hose out the door quickly.
Q: Can we customize product?
A: Yes, we always produce custom-made Hot sale hydraulic metric pipe fittings nipple for hydraulic hose for our customers, according to drawings or sample.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample free of charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
