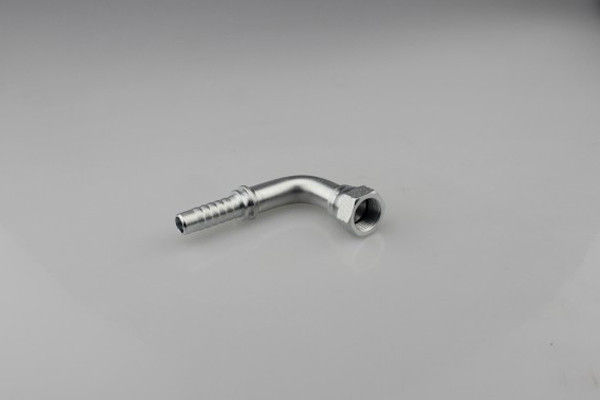

90 Elbow JIC Swivel Female 90 Seat Angle Hydraulic Fitting

26791 fittings are 90 degrees JIC female 74 degrees cone seat threads. Complete sizes from 1/4’’ to 2’’ are covered in our production. All hydraulic fittings are manufactured from 45 carbon steel and stainless steel. Except forgings which are made from carbon steel 20. Our fittings are zinc plated and chrome plated mostly. But we can meet customers’ special demands.

Details

Material:Stainless Steel, SS304, SS316, SS316L
Technics:stainless steel hex bar
Type:Coupling
Place of Origin:China (Mainland)
Brand Name:YH
Connection:male, female
Shape:Equal, reducing
Head Code:Round
Products:90 elbow JIC swivel female 90 seat angle hydraulic fitting
Size:1/4"-4"
Thread:BSP, JIC, SAE, NPT, DIN2999, ISO 7/1
Certificate:ISO 9001:2008, CE
Standard:Eaton, Parker
sample:YES
customize:yes, sample or drawing

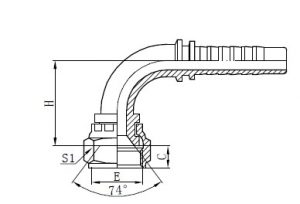

Technical Data Table

   代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1H
26791-04-047/16"X206048.51730
26791-05-041/2"X206049.51931.5
26791-05-051/2"X208059.51934.5
26791-06-049/16"X18604101931.5
26791-06-059/16"X18805101934.3
26791-06-069/16"X181006101936
26791-08-063/4"X161006112438.4
26791-08-083/4"X161208112444.5
26791-10-067/8"X141006112739.9
26791-10-087/8"X181208112745
26791-10-107/8"X181610112750
26791-12-081.1/16"X12120813.53246
26791-12-101.1/16"X12161013.53251.5
26791-12-121.1/16"X12201213.53257.6
26791-14-121.3/16"X12201214.53658
26791-16-121.5/16"X12201214.54159.5
26791-16-141.5/16"X12221414.54162
26791-16-161.5/16"X12251614.54171.6
26791-20-161.5/8"X12251615.55073
26791-20-201.5/8"X12322015.55082
26791-24-201.7/8"X12322018.55582
26791-24-241.7/8"X12402418.55593.4
26791-32-322.1/2"X12503224.575118.9

FAQ

Are you a factory or trading company?
We are a professional manufacturer having 16 years production experiences and 14 years exporting experiences.
Where is your factory located or how can I visit your factory?
Our factory located in Cangzhou City, Hebei Province. To Tianjin city needs 30 minutes, to Beijing city needs
1 hour by high-speed train.
What is the shipping way and terms of payment?
1. Door to door by DHL, FedEx, UPS, TNT ... etc for samples and parcels;
2. LCL by air or by sea by LCL, customer forwarder/agent is also acceptable;
3. Wester union, T/T, L/C at sight are all available for us.
What is the production period normally?
1. Samples: within 7 working days.
2. Normal order: 20 to 45 days.
