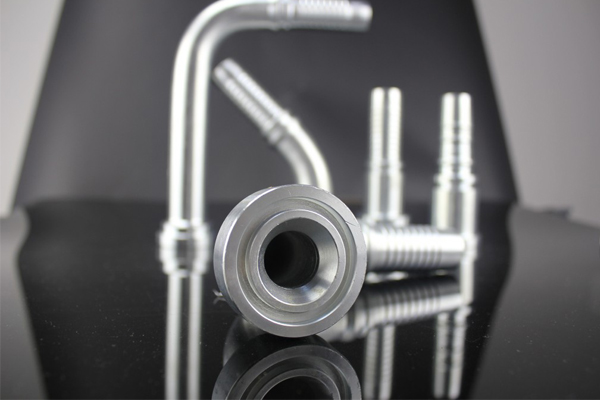

SAE-Interlock-Flange-Fitting

87643 fittings are special for 45 degrees SAE 6000PSI for interlock hose like SAE 100R15. Our SAE flange 6000PSI is good in quality and competitive in prices. We are offering OEM and ODM service according to your requirements. Please refer to our catalog attached on the website for details of popular fittings.

Details

Part no.: 87643(45°SAE Flange 6000PSI For Interlock)
Related items: 87641(for one or two steel wire braided hose); 87642(for one, two or for steel wire braided hose)
Surface treat: galvanized yellow zinc, black zinc, Cr6 free zinc, nickel
Sizes available: from 1/8’’ to 3’’
Application: widely used in the hydraulic and fluid conveying system of machinery, oilfield, mine, building, transportation, food and other industries.

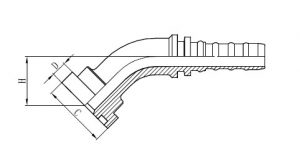

Technical Data Table

代号

PART NO.

法兰尺寸

FLANGE SIZE

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCDLH
87643-08-081/2"120831.823.97.924.7
87643-12-123/4"201241.331.78.931.8
87643-16-161"251647.6389.634
87643-20-201.1/4"32205443.610.439.4
87643-24-241.1/2"402463.550.812.745.5
87643-32-322"503279.466.512.752.7

FAQ

1. How can you ensure the quality of your hydraulic fittings?
We will arrange hydraulic fitting sample confirmation before production. During the production, we have professional QC staffs control the quality and manufacture in accordance to the confirmed sample. We will also send you our material report and quality report with delivery.
2. Do you offer OEM service and can you produce as our drawings?
Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawings
3. Can we design the packaging?
Yes, you can indicate the dimensions of the carton and pallet.
4. Do you offer free samples?
We can provide free hydraulic hose and fitting samples. After you place an order, we will give back the freight.
5. What's your delivery time?
Generally, we will arrange hydraulic fitting shipment with 25 days after receiving the deposit. If urgent, we can also meet your requirement.
