60 Degree Cone Seat Double Hexagon Pipe JIS Female Hydraulic Fitting

29612 fittings are JIS GAS female 60 degrees cone seat for spiral hoses, one or two wire hoses. 29612 fittings are designed with single hex and manufactured in YH Hydraulic. But sometimes, customers also require double hex for 29612 fittings. So if you require double hex 29612 fittings, please advise us it clearly so that right prices can be quoted.

Details

---

Part no.: 29612(JIS GAS Female 60 Degrees Cone Seat For Spiral Hose)

Type: Double Hex and single hex are all available for production

Related Items: 29611(for one or two wire hoses); 29642(45 degrees elbow); 29692(90 degrees elbow)

Samples: less than 5pcs is free of charge

MOQ: 300pcs to 500pcs for each item; if less than MOQ required, we will check with our stock and try to meet your demands.

Stock condition: we have kept many items as stock products to shorten the delivery time

Technical Data Table

---

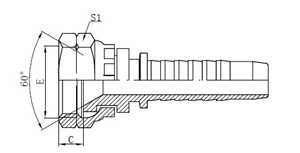

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1
29612-08-08	G1/2"	12	08	10.5	27
29612-12-12	G3/4"	22	12	12	32
29612-16-16	G1"	25	16	14.5	41
29612-20-20	G1.1/4"	32	20	16	50
29612-24-24	G1.1/2"	40	24	18	55
29612-32-32	G2"	50	32	24	70

Quick Details

---

Type: Fittings
Model Number: 29611D
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Name: 60 Degree Cone Seat Double Hexagon Pipe JIS Female Hydraulic Fitting
Material: Carbon Steel, stainless steel, brass
Color: Silver/Yellow
Fitting Material Type: Zinc Plated Carbon Steel, Chrome Plated Brass etc
Kind: Pipe Fitting Lateral Tee
Suitable Medium: Water/Oil/Gas
Thread: cold galvanized fitting
Deivery time: 30-45days of butt weld fitting
Item no: 29611D
Elbow: 0 Degree

Delivery Detail: 1-2weeks

Package Detail: Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage: 1. High quality 2. Rich inventory  3. Prompt delivery 4. Reasonable price

---
