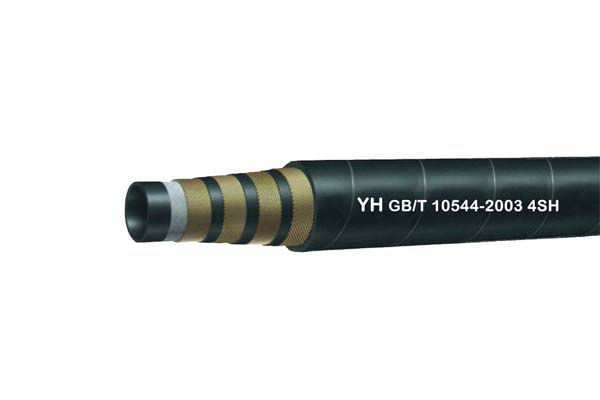

GB/T10544-2003 4SH rubber hoses are widely accepted among our customers. 4SH hoses are with four high tensile steel wire spiral layers. Popular sizes can be found in YH factory. In YH, fittings are standard for these hoses. 4SH hoses need fitting items like 10512 and 30612(“2” means tail size). We welcome customers order hoses with our fittings together so sizes can be fitted well.
Details
Part no.: GB/T10544-2003 4SH
Tube: Oil resistant synthetic rubber
Reinforcement: four high tensile steel wire spiral layers
Cover: abrasion and weather resistant synthetic rubber
Temperature range: -40℃ up to +100℃
MOQ: reproduced items require 200m each size.
Samples policy: less than 1m is free of charge for checking quality
Technical Data Table
型号 TYPE | 公称内径 I.D. | 参考外径 O.D. | 钢丝层外径 Reinforcement diameter | 工作压力 W.P. | 试验压力 P.P. | 最小爆破压力 B.P. | 最小弯曲半径 Min. bend radius |
mm | mm | mm | MPa | MPa | MPa | mm | |
4SH-19 | 19 | 32.0 | 28.5±0.7 | 42 | 84 | 168 | 280 |
4SH-25 | 25 | 38.7 | 35.0±0.7 | 38 | 76 | 152 | 340 |
4SH-32 | 32 | 45.5 | 42.0±0.8 | 32.5 | 65 | 130 | 460 |
4SH-38 | 38 | 53.5 | 48.8±0.8 | 29 | 58 | 116 | 560 |
4SH-51 | 51 | 67.5 | 63.2±0.8 | 25 | 50 | 100 | 700 |
