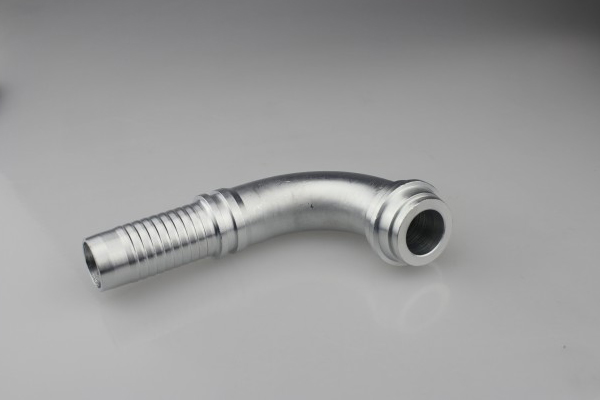

45degree Metric Female 24degree Cone O-Ring H. T. DIN3865 Hydraulic Hose Fitting (20541)

YH Hydraulic offers a comprehensive line of metric fittings. Our fittings line contains a vast array of items always meeting the appropriate international standards. 30591 item is 90 degrees metric female thread 24 degrees cone heavy type with o-ring which is a non-crimp type. YH can produce non-cataloged fittings as your drawings or samples.

Details

---

Part no.: 30591(90°Metric Female 24°Cone H.T. with O-ring DIN3865 Non-crimp type)

Finish: smooth surface without burr; high degree of smooth finish; package well to protect from collision

Coating: zinc-plated(Galvanized); chrome plated(Cr3); Nickel plated

Package: carton size: 300mm*200mm*120mm; box size: 900mm*900mm*800mm(Standard ones)

Delivery: most parts are stock products can be delivered with 10 days

Technical Data Table

---

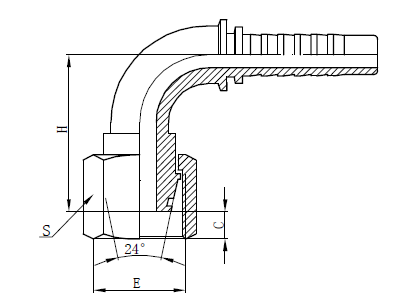

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE.O.D	尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH		C	S	H
30591-18-04	M18X1.5	6	04	10	2	22	36
30591-20-05	M20X1.5	8	05	12	3	24	44
30591-22-06	M22X1.5	10	06	14	3	27	46.3
30591-24-08	M24X1.5	12	08	16	3	30	51
30591-30-10	M30X2	16	10	20	3.5	36	57.5
30591-36-12	M36X2	20	12	25	3	41	68
30591-42-16	M42X2	25	16	30	5	50	77.5
30591-52-20	M52X2	32	20	38	6.5	60	89
30591-52-24	M52X2	40	24	38	6.5	60	102.5

Quick Details

---

Type: Fittings
Model Number: Hydraulic Hose Fitting(20541)
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Certification:ISO9001:2000
Material: carbon steel,stainless steel,other requested material
Surface Color: White,golden yellow
Thread:Metric thread
Technique: Forged/Casting
Packing: Carton and Pallet

---
