45degree elbow jic female 74degree cone seal threaded fittings

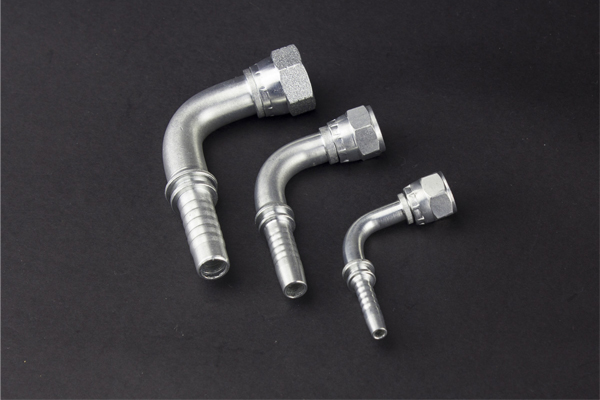

28691 series fittings are 90 degrees JIS metric female 60 degrees cone seat. General speaking, 28691 fittings are finished with double hex. But they can also be with single hex to customers demands because it can cut material costing so that selling prices are more competitive. Sizes from 04 to 24 are popularly produced in our factory.

Details

---

Part no.: 28691(90°JIS Metric Female 60°Cone Seat)

Type: Single nut or double hex both available in our factory

Material: carbon steel; stainless steel

Coating: white zinc-plated; yellow zinc-plated; chrome plated(silver)

Prices: prices quoted are based on our MOQ demands(300PCS one item)

Origin: Ningbo, China

Technical Data Table

---

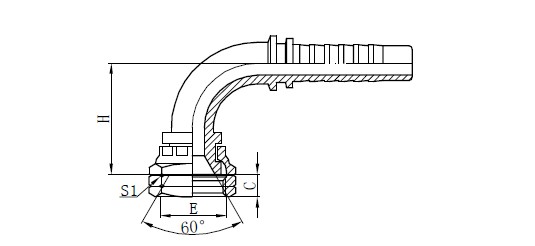

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸   DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	H
28691-14-04	M14X1.5	6	04	12	19	38.2
28691-16-05	M16X1.5	8	05	9.5	22	44
28691-18-06	M18X1.5	10	06	11	24	46.4
28691-22-08	M22X1.5	12	08	14	27	52.5
28691-24-10	M24X1.5	16	10	13.5	32	59
28691-30-12	M30X1.5	22	12	20	36	68.5
28691-33-16	M33X1.5	25	16	20.5	41	76
28691-36-20	M36X1.5	32	20	20.5	46	90
28691-42-24	M42X1.5	40	24	18.5	55	103

Hydraulic Fitting 45 DEGREE JIC FEMALE 74 DEGREE  CONE SEAT

PART NO.	THREAD E	HOSE BORE		DIMENSIONS
		DN	DASH	C	S2	H
P26741-04-04	7/16"x20	6	04	9	15	18.1
-05-04	1/2"x20	6	04	9.5	17	18.5
-05-05	1/2"x20	8	05	9.5	17	19.3
-06-04	9/16"x18	6	04	10.5	19	18.5
-06-05	9/16"x18	8	05	10.5	19	19.3
-06-06	9/16"x18	10	06	10.5	19	20
-08-06	3/4"x16	10	06	11	24	21.4
-08-08	3/4"x16	12	08	11	24	23.5
-10-06	7/8"x14	10	06	14	27	21.8
-10-08	7/8"x14	12	08	14	27	24
-10-10	7/8"x14	16	10	14	27	25.3
-10-12	7/8"x14	20	12	14	27	28.9
-12-08	1.1/16"x12	12	08	15	32	25
-12-10	1.1/16"x12	16	10	15	32	26.4
-12-12	1.1/16"x12	20	12	15	32	30
-14-12	1.3/16"x12	20	12	15	36	30
-16-12	1.5/16"x12	20	12	16	41	30
-16-16	1.5/16"x12	25	16	16	41	31.5
-20-16	1.5/8"x12	25	16	17	50	32.5
-20-20	1.5/8"x12	32	20	17	50	36.6
-24-20	1.7/8"x12	32	20	20	55	36.9
-24-24	1.7/8"x12	40	24	20	55	41.6
-32-32	2.1/2"x12	50	32	24.5	75	49.5

Application: Automobile, engineering Machinery, Lathe, Machinery, Metallurgy, Petroleum, mine, construction, chemical industry, shipbuilding, spacecraft, military, Textile, Ocean, Recreation, Electronics and many other fields related with hydraulic and their delivery system of fluid and gas etc;

Delivery Detail: 1-2weeks

Package Detail: Nylon plastic+corrugated carton +Multiple plywood case

Custom-orientated Service: produce according to your drawings or sample, offer custom-design

Our advantage: 1. High quality 2. Rich inventory 3. Prompt delivery 4. Reasonable price

Quick Details

---

Type: Fittings
Model Number: P26741
Brand Name: YH
Place of Origin: Zhejiang, China (Mainland)
Full name: jic female hydraulic fitting with 45 elbow
Material:: carbon steel/brass/stainless steel
SAE: J514
Product Name:: JIC Hydraulic Pipe Connector

---
