Details

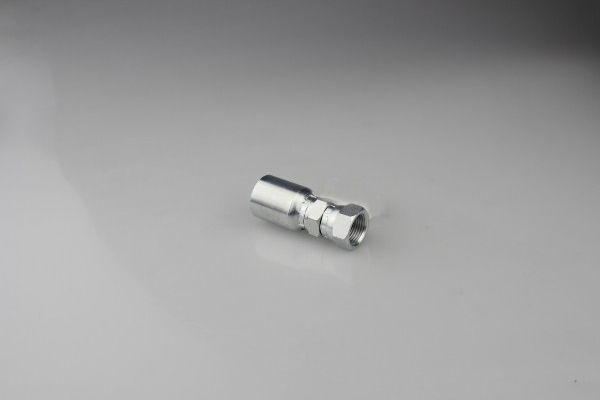

Part no: 30511one piece(Metric Female 24°Cone H.T. With O-ring Integral Fitting For One or Two-Wire Hose)
Related types: 30511 fittings; 00110 ferrules or 00210 ferrules; R1AT hoses; R2AT hoses; R1A hoses; R2A hoses; 1SN hoses, 2SN hoses, etc.
Equipment related; CNC machines, automatic punch; raw material cutter; ferrule(nut) crimping machine, etc
Coating: white zinc-plated; yellow zinc-plated; chrome plated; nickel plated

Product Overviews

YH Hydraulic is a specialist supplier of industrial valves & tube fittings We are specialized in hydraulic hose fittings, ferrules, adaptors, couplings, stainless steel fittings & brass fittings
1. Hydraulic Hose Fittings:
1). BSP male, female fitting, straight & elbow, nuts, ferrules
2). JIC male, female fitting, straight & elbow, nuts, ferrules
3). NPT male, female fitting, straight & elbow, nuts, ferrules
4). ORFS male, female fitting, straight & elbow, nuts, ferrules
5). SAE male, female fitting, straight & elbow, nuts, ferrules
6.) Metric male, female fitting, straight & elbow, nuts, ferrules
7). Reusable fittings
8). One-piece fittings
2. Hydraulic Adaptors:
1). BSP male, female adaptor, 3 ways tee 4 ways tee
2). JIC male, female adaptor, 3 ways tee 4 ways tee
3). NPT male, female adaptor, 3 ways tee 4 ways tee
4). ORFS male, female fitting, straight & elbow, nuts, ferrules
5). SAE male, female fitting, straight & elbow, nuts, ferrules
6.) Metric male, female fitting, straight & elbow, nuts, ferrules
3.Couplers and clamps:
European / American / Austraulia type camlock, pin-plug and clamps with NPT, BSP,etc thread.
4.Stainless Steel (316SS / 304SS) & Brass & aluminum fittings:
NPT,JIC,BSP etc threaded male and female fittings & adaptors for low & high pressure

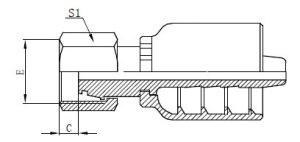

Technical Data Table

  代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE O.D.

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS1
30511-16-04one pieceM16X1.56048222
30511-18-04one pieceM18X1.560410224
30511-20-05one pieceM20X1.580512327
30511-20-06one pieceM20X1.5100612327
30511-22-06one pieceM22X1.5100614327
30511-24-08one pieceM24X1.5120816330
30511-30-10one pieceM30X21610203.536
30511-36-12one pieceM36X2201225341
30511-36-14one pieceM36X2221425341
30511-42-16one pieceM42X2251630550
30511-52-20one pieceM52X23220386.560
30511-52-24one pieceM52X24024386.560

FAQ

1.Q: What’s your delivery time?
A: The time of delivery is 20 days.
2.Q: What’s the shipping port?
A: We ship the goods via Ningbo, Shanghai and the other main ports in China.
3.Q: What’s your payment term?
A: L/C, D/A, D/P, T/T.
4.Q: What’s the location of your company?
A: Zhejiang Province, China. If you want to have a visit, you will be very welcomed.
5.Q: How about your quality?
A: You can try a small order and you will have your judgement.
6.Q: How about the samples?
A: We can send you samples with little and reasonable charge.
7.Q: Are you manufactory?
A: Yes, we are a specialized manufacture of hose connector,instrument fitting connector,transition joints and so on.
