24 degree DKOL DKOS straight and elbow hydraulic nipple

20411 fittings are metric female 24 degrees cone light type with o-ring which are based on DIN3853 standard. 20411 fittings are crimped types compared with 30411 fittings. Hose fittings from YH Hydraulic are of perfect quality and cost control. YH insist on offering customers with good quality and reasonable prices.

Details

Part no.: 20411(Metric Female 24°Cone L.T. With O-ring DIN3853; Crimped Type)

Thread types: metric, JIS, BSP, BSPT, ORFS, NPT, JIC, NPSM, etc.

Application: machinery, transportation, mines, oil fields, agriculture, vehicle, heavy industry, etc.

Surface treatment: yellow zinc plated, white zinc plated, nickel plated, chrome plated, etc.

Delivery time: less than 10 days for 20411 fittings as we have kept a big quantities in stock.

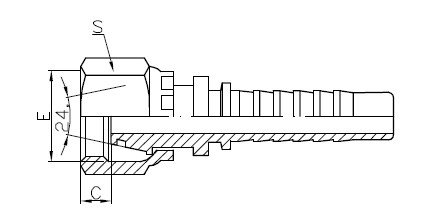

Drawing

Technical Data Table

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		管子外径 TUBE.O.D	尺寸 DIMENSIONS
代号 PART NO.	螺纹E THREAD E	公称内径DN	标号 DASH	管子外径 TUBE.O.D	C	S
20411-12-04	M12x1.25	6	04	6	2	17
20411-14-05	M14x1.5	8	05	8	3.5	19
20411-12-06	M12x1.25	10	06	6	2	17
20411-14-06	M14x1.5	10	06	8	3.5	19
20411-16-06	M16x1.5	10	06	10	3.5	22
20411-18-08	M18X1.5	12	08	12	3.5	24
20411-22-10	M22X1.5	16	10	15	2.5	27
20411-26-12	M26X1.5	20	12	18	2.5	32
20411-27-12	M27X1.5	20	12	18	2.5	32

Product Description

1. Material: Q235,C45,SUS304,SUS316,H58-3,H59,etc...

2. Size: 1/4"-1 1/2"

3. Standard: DIN 20022/20023,GB10544/GB3836,GB/T 9065.5-2010

4. Certification: ISO9001

Product Name	24 degree DKOL DKOS straight and elbow hydraulic nipple
Material	carbon steel,stainless steel,brass,aluminium,etc...
Treatment	Cr6free Zinc, Nickel, chrome,painting,etc...
Thread	Metric,BSP,JIC,DIN,JIS,etc...
Connection	female and male
Process	CNC machining based on forged part or bar raw material
Code NO.	DKOL,DKOS,ORFS,CEL,etc...
Used	precision parts, machinery accessories, truck and auto parts, industrial parts,mining accessories, off-shore appliances, agricultral facilities, and construction material, etc..

Quick Details

Material: Carbon Steel
Technics: machining
Type: hydraulic fitting
Place of Origin: Zhejiang, China (Mainland)
Brand Name: YH
Connection: Female
Shape: Equal
Head Code:Hexagon
Product name:: 24 degree DKOL DKOS straight and elbow hydraulic nipple
Size:: 1/4"-1 1/2"
Connection:: female
Standard:: Metric BSP BSPT JIC NPT DIN
Thread:: Metric M14*1.5-M64*2
Cone seat:: 24 37 55 60 74 90 degree
Shape:: straight and elbow
Surface treatment:: Cr6free zinc
Application:: high pressure rubber hose and pipe
Country Origin:: Made in China
