24 degree cone Metric standard hydraulic DKOL DKOS hose fitting

20441 fittings are 45 degrees metric female 24 degrees cone with o-ring which is based on DIN3853 standard. 20441 fittings are not only light type but also crimped type. 20441 fittings are made from carbon steels which are available for 45 carbon steel or 20 carbon steel. Raw materials are put into production by CNC machines after cut.

Details

Part no.: 20441(45°Metric Female 24°Cone L.T. With O-ring DIN3853; Crimped Type)

Sizes: thread types are from M12 to M27 available; hose sizes are from 1/4’’ to 3/4’’ are available. Others please check 30441 or advise us.

MOQ policy: no limit for stock products; require 300PCS each for items.

Delivery time: less than 50 days for one order no matter big or small; delivery time can be discussed.

Payment term: 30% TT in advance; 70% TT before shipment; as invoice said.

Technical Data Table

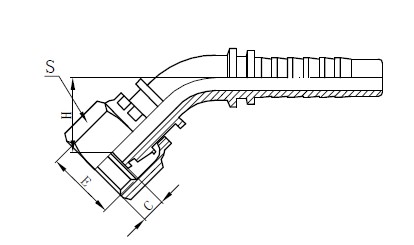

Drawing

Technical Data Table

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE管子外径

TUBE.O.D

尺  寸   DIMENSIONS
公称内径DN标 号 DASHCSH
20441-12-04M12X1.5604621724.3
20441-14-05M14X1.580583.51928.3
20441-12-06M12X1.51006621728.3
20441-14-06M14X1.5100683.51929.3
20441-16-06M16X1.51006103.52229.4
20441-18-08M18X1.51208123.52433
20441-22-10M22X1.51610152.52735
20441-26-12M26X1.52012182.53237.5
20441-27-12M27X1.52012182.53238.5

Product Description

1. Material: Q235,C45,SUS304,SUS316,H58-3,H59,etc...

2. Size: 1/4"-1 1/2"

3. Standard: DIN 20022/20023,GB10544/GB3836,GB/T 9065.5-2010

4. Certification: ISO9001

Product Name

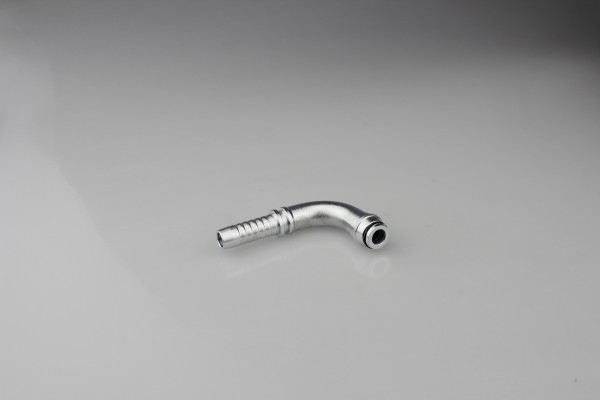

24 degree cone Metric standard hydraulic DKOL DKOS hose fitting
Material
carbon steel,stainless steel,brass,aluminium,etc...
Treatment
Cr6free Zinc, Nickel, chrome,painting,etc...
Thread
Metric,BSP,JIC,DIN,JIS,etc...
Connection
female and male
Process
CNC machining based on forged part or bar raw material
Code NO.
DKOL,DKOS,ORFS,CEL,etc...
Used
precision parts, machinery accessories, truck and auto parts, industrial parts,mining accessories, off-shore appliances, agricultral facilities, and construction material, etc...

Quick Details

Material: Carbon Steel
Technics: machining
Type: hydraulic fitting
Place of Origin: Zhejiang, China (Mainland)
Model Number: DKOL ORFS CEL ETC
Brand Name: YH
Connection: Female
Shape: Equal
Head Code: Hexagon
Product name:: 24 degree cone Metric standard hydraulic DKOL DKOS hose fitting
Size:: 1/4"-1 1/2"
Connection:: female
Standard:: Metric BSP BSPT JIC NPT DIN
Thread:: Metric M14*1.5-M64*2
Cone seat:: 24 37 55 60 74 90 degree
Shape:: straight and elbow
Surface treatment:: Cr6free zinc
Application:: high pressure rubber hose and pipe
Country Origin:: Made in China
