22691K ELBOW SOCKETLESS grp stainless steel pipe fitting hose fitting FEMALE COMPACT ELBOW FITTINGS

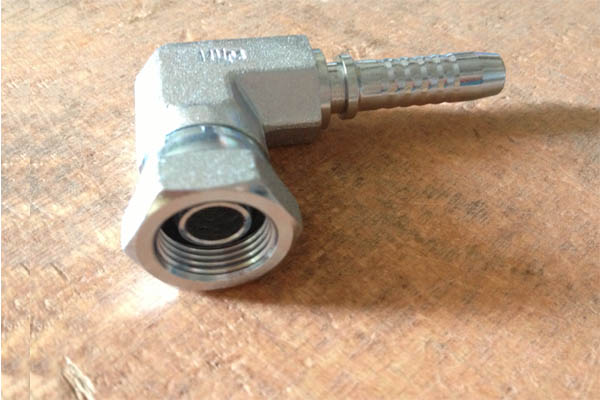

26791K fittings are 90 degrees JIC female 74 degrees cone seat compact elbow. 26791K fittings are made from carbon steel which is similar as mild steel. 26791K fittings are forged before put into production by CNC machines. We can ensure the exact precision, right tolerance, and smooth surface treatment.

Details

---

Part no.: 26791K(90°JIC Female 74°Cone Seat Compact Elbow)

Thread Types: BSPT, JIC, BSP(these three types are standard items manufactured in our factory)

MOQ: 300PCS each item

Delivery time: about 30 days.

Technical Data Table

---

Drawing

代号 PART NO.	螺纹E THREAD E	胶管 HOSE BORE		尺  寸 DIMENSIONS
		公称内径DN	标 号 DASH	C	S1	S2	H
26791K-04-04	7/19"X20	6	04	8.5	17	11	18.2
26791K-06-04	9/16"X18	6	04	10	19	14	21
26791K-06-06	9/16"X18	10	06	10	19	17	21.3
26791K-08-06	3/4"X16	10	06	11	24	19	25
26791K-08-08	3/4"X16	12	08	11	24	22	25
26791K-10-08	7/8"X14	12	08	11	27	22	27.5
26791K-10-10	7/8"X14	16	10	11	27	22	27.5
26791K-12-12	1.1/16"X12	20	12	13.5	32	27	30
26791K-16-16	1.5/16"X12	25	16	14.5	41	33	34.3

Quick Details

---

Material: Carbon Steel
Technics: Forged
Type: Coupling, copper pipe fitting
Place of Origin: Zhejiang, China (Mainland)
Model Number: 22691k
Brand Name: YH
Connection: Female
Shape: Equal
Head Code: Square
COLOR: white
Gender: FEMALE COMPACT ELBOW FITTINGS
material: carbon steel, brass, stainless steel
Application:ELBOW SOCKETLESS
standard: BSP,JIC,DIN,Metric
surface treatment:plated with white zinc or color
Main market:Russian, Ukraine, Italy, Gemany
Tolerance: 0.01mm-0.02mm
Standard: EATON, PARKER

---
