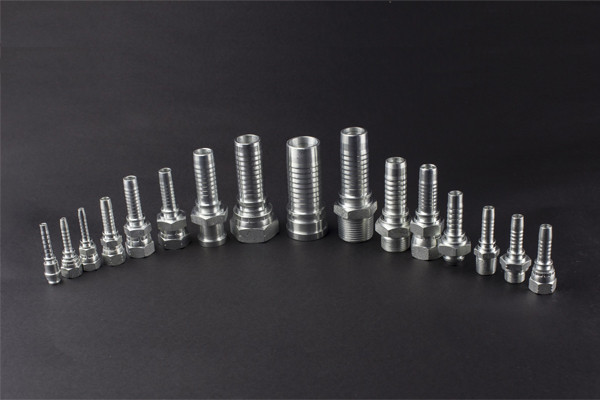

BSPT-Male-Fittings

13011 series fittings are BSPT male thread. The British BSP connections includes two types o f threads, BSPP which are straight(or parallel) and BSPT which are tapered. The BSPT tapered male will mate with a BSPT tapered female(usually a port) and seals on the threads. The BSPP parallel male has a 30 degrees chamfered seat which seals with a BSPP swivel female on its 30 degrees cone seat.

Details

Part no.: 13011(BSPT Male)
Threads involved: Metric, JIS metric, BSP, BSPT, JIC, NPT, ORFS, etc.
Main fittings: metric fittings, American thread fittings, British thread fittings, elbow fittings; flange fittings; integral fittings
MOQ: 500pcs for re-produced items(04-08); 300pcs for re-produced items(10-32)
Samples: less than 5pcs is free of charge for free.
Note: you can download our brochure from the above click.

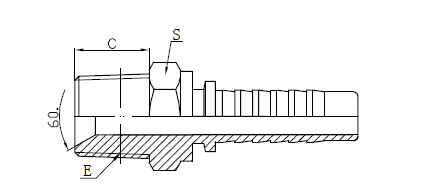

Technical Data Table

代号

PART NO.

螺纹E

THREAD E

胶管 HOSE BORE尺  寸   DIMENSIONS
公称内径DN标 号 DASHCS
13011-02-04R1/8"X286041012
13011-04-04R1/4"X196041417
13011-06-04R3/8"X196041419
13011-06-05R3/8"X198051419
13011-06-06R3/8"X1910061419
13011-08-06R1/2"X1410061922
13011-08-08R1/2"X1412081922
13011-12-12R3/4"X14201219.530
13011-16-16R1"X1125262436
13011-20-20R1.1/4"X1132202546
13011-24-20R1.1/2"X1132202550
13011-24-24R1.1/2"X1140342550
13011-32-32R2"X1150322865

Advantage

1) our material is solid for hydraulic hose end fittings
2) Hydraulic coupling suface treatment is beautiful, galvanizing is Environmental protection zinc
3)Our package are standard export, use pallet, could protect thread hydraulic fitting
